Stacks: benthic δ18O stacks
Global stacks of benthic foraminiferal δ18O, the reference of the ice volume and deep-sea temperature over glacial cycles and the age model of many reconstructions. Stacks is a records dataset (non-gridded data, see Records): its products, defined in Stacks/records.toml, are prepared files in the form of the CF discrete sampling geometries, written to $FESMDATA_PRODUCTS/Records/Stacks/Stacks-<product>.nc, each with its text form (.txt).
Products
| Product | Source | Variables | Time |
|---|---|---|---|
Stacks-LR04 |
Lisiecki and Raymo (2005): stack of 57 records, doi:10.25921/k88j-0106 | d18O_benthic, d18O_benthic_sd (standard error) (‰) |
0-5.32 Ma (1 kyr to 600 ka, then 2, 2.5 and 5 kyr) |
Stacks-ProbStack |
Ahn et al. (2017): probabilistic stack of 180 records, doi:10.1093/climsys/dzx002 | d18O_benthic, d18O_benthic_sd, d18O_benthic_min, d18O_benthic_max (95%) (‰) |
0-5 Ma (as LR04) |
Both are series of the region “global” without a location (featureType timeSeries, dimension region, lat and lon missing). time is in years before 1950 CE (units “years ago”) on the age model of the stack.
Licences
| Source | Licence |
|---|---|
| Lisiecki and Raymo (2005) | NOAA NCEI open data, no licence stated; publishing assumed to be allowed (also on PANGAEA, CC BY 3.0) |
| Ahn et al. (2017) | GPL-3.0 (repository of the authors) |
Making the dataset
julia fesmdata.jl record Stacksprepares the missing sources (<Source>/prepare.jl), checks the prepared files and copies them to $FESMDATA_PRODUCTS/Records/Stacks/ with their text forms (--overwrite to replace them).
Downloads
Download the files with fesmdata.jl into $FESMDATA_PRODUCTS/<Domain>/<GRID>/ (see Download), or one by one from the links below. All released datasets are listed under Products.
Version 2.0.0 (2026-10-15, packages). 4 files, 346.1 kB.
julia fesmdata.jl fetch Stacks Records
Stacks 4 files, 346.1 kB
| Stacks-LR04.nc | 41.5 kB |
| Stacks-LR04.txt | 81.6 kB |
| Stacks-ProbStack.nc | 73.9 kB |
| Stacks-ProbStack.txt | 149.1 kB |
Figures

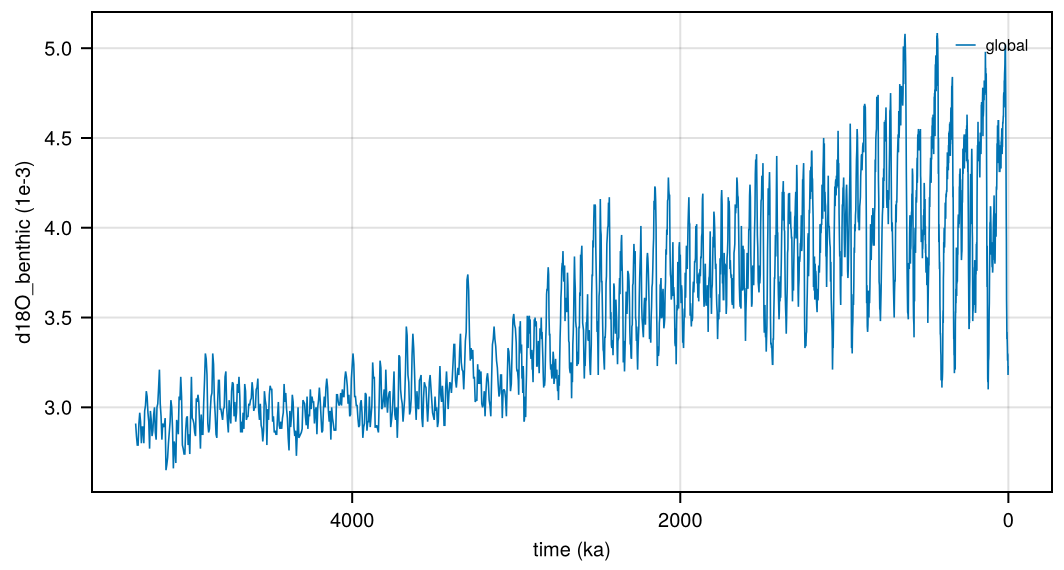

LR04

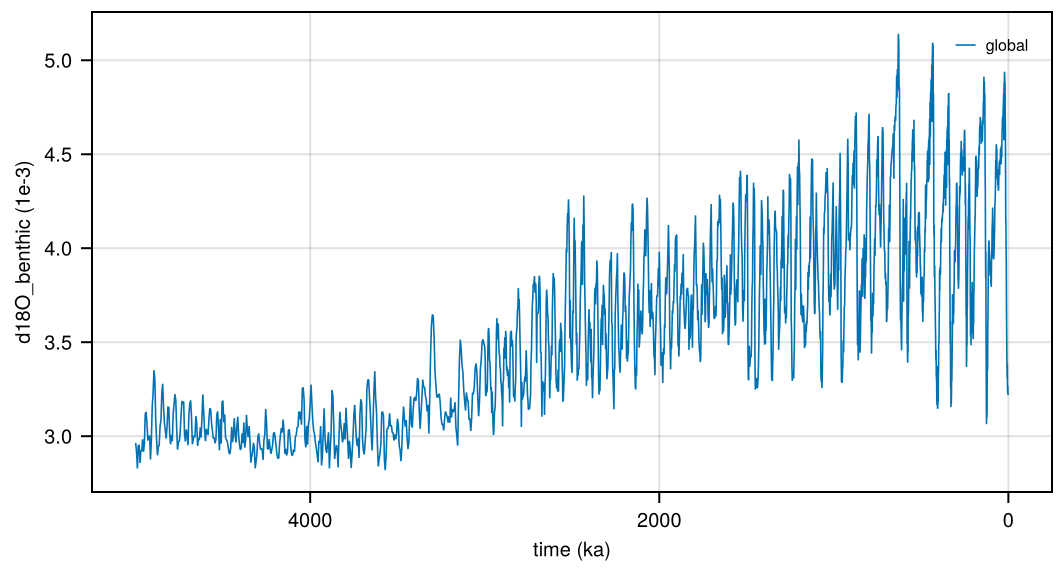

ProbStack
